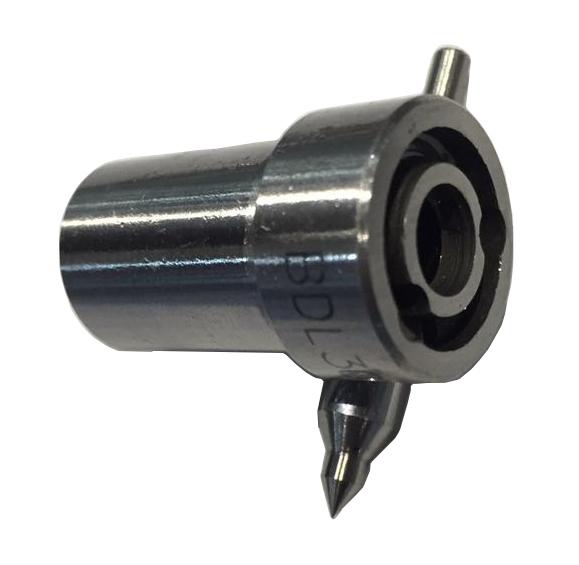

Mechanical Diesel Injector Nozzle – Precision Fuel Delivery for Diesel Engines
What Is a Mechanical Diesel Injector Nozzle?
A Mechanical Diesel Injector Nozzle is a key fuel system component used in traditional diesel injection systems. It is responsible for atomizing diesel fuel into a fine mist and delivering it into the combustion chamber at the correct pressure and spray pattern.
Unlike electronic injectors, mechanical injector nozzles operate through spring and pressure-controlled mechanisms, making them highly reliable, durable, and widely used in older diesel engines, agricultural machinery, trucks, generators, and industrial equipment.
How a Mechanical Diesel Injector Nozzle Works
The working principle is based on precise fuel pressure control:
- Fuel is supplied from the injection pump to the nozzle
- Pressure builds until it exceeds the nozzle spring tension
- The needle valve lifts automatically
- Fuel is atomized through precision nozzle holes
- Injection stops when pressure drops and the valve closes
This cycle repeats every engine combustion stroke, ensuring consistent fuel delivery.
Key Functions of Diesel Injector Nozzles
Mechanical injector nozzles play a vital role in engine performance:
- Atomize diesel fuel into fine particles for efficient combustion
- Control injection timing and spray pattern
- Improve engine power output
- Reduce fuel waste and incomplete combustion
- Maintain stable engine operation under load
A properly functioning nozzle directly affects fuel efficiency and emission levels.
Types of Mechanical Diesel Injector Nozzles
Different nozzle designs are used depending on engine requirements:
1. Single Hole Nozzle
- Simple structure
- Used in low-speed diesel engines
- Focused fuel jet stream
2. Multi-Hole Nozzle
- Multiple spray holes for better atomization
- Common in modern mechanical systems
- Improved combustion efficiency
3. Pintle Nozzle
- Extended needle (pintle tip)
- Better control of spray pattern
- Reduced carbon buildup
4. Pintaux Nozzle
- Auxiliary hole improves cold start performance
- Used in older diesel engines
Features of High-Quality Mechanical Injector Nozzles
A premium diesel injector nozzle is designed for long-term stability and precision:
High-Precision Machining
Tight tolerances ensure consistent spray pattern and fuel atomization.
Wear-Resistant Steel Material
Made from hardened alloy steel to withstand high pressure and temperature.
Stable Injection Performance
Ensures uniform fuel delivery across all engine cylinders.
Anti-Carbon Buildup Design
Reduces clogging and improves long-term reliability.
Strong Pressure Resistance
Capable of handling repeated high-pressure injection cycles.
Applications of Mechanical Diesel Injector Nozzles
These components are widely used in:
- Diesel generators
- Agricultural tractors
- Heavy-duty trucks
- Construction machinery
- Marine diesel engines
- Industrial power systems
They are especially common in mechanical fuel injection systems without ECU control.
Common Signs of Injector Nozzle Problems
A worn or faulty nozzle may cause:
- Hard engine starting
- Black smoke from exhaust
- Poor fuel economy
- Engine misfiring or knocking
- Loss of power under load
- Irregular idle speed
Timely replacement helps avoid damage to the fuel injection pump and engine.
Advantages of Mechanical Diesel Injector Nozzles
- Simple and reliable structure
- Easy maintenance and replacement
- No electronic components required
- Long service life under harsh conditions
- Cost-effective solution for diesel engines
Technical Specifications (Typical)
- Material: High-strength alloy steel
- Type: Mechanical fuel injector nozzle
- Pressure range: Engine-dependent calibration
- Spray type: Multi-hole / pintle / single-hole options
- Application: Diesel combustion engines
Maintenance Recommendations
To ensure optimal performance:
- Use clean diesel fuel to avoid clogging
- Regularly inspect spray pattern during servicing
- Replace nozzles in matched sets for multi-cylinder engines
- Clean fuel filters to reduce contamination risk
- Avoid prolonged operation with poor combustion symptoms
