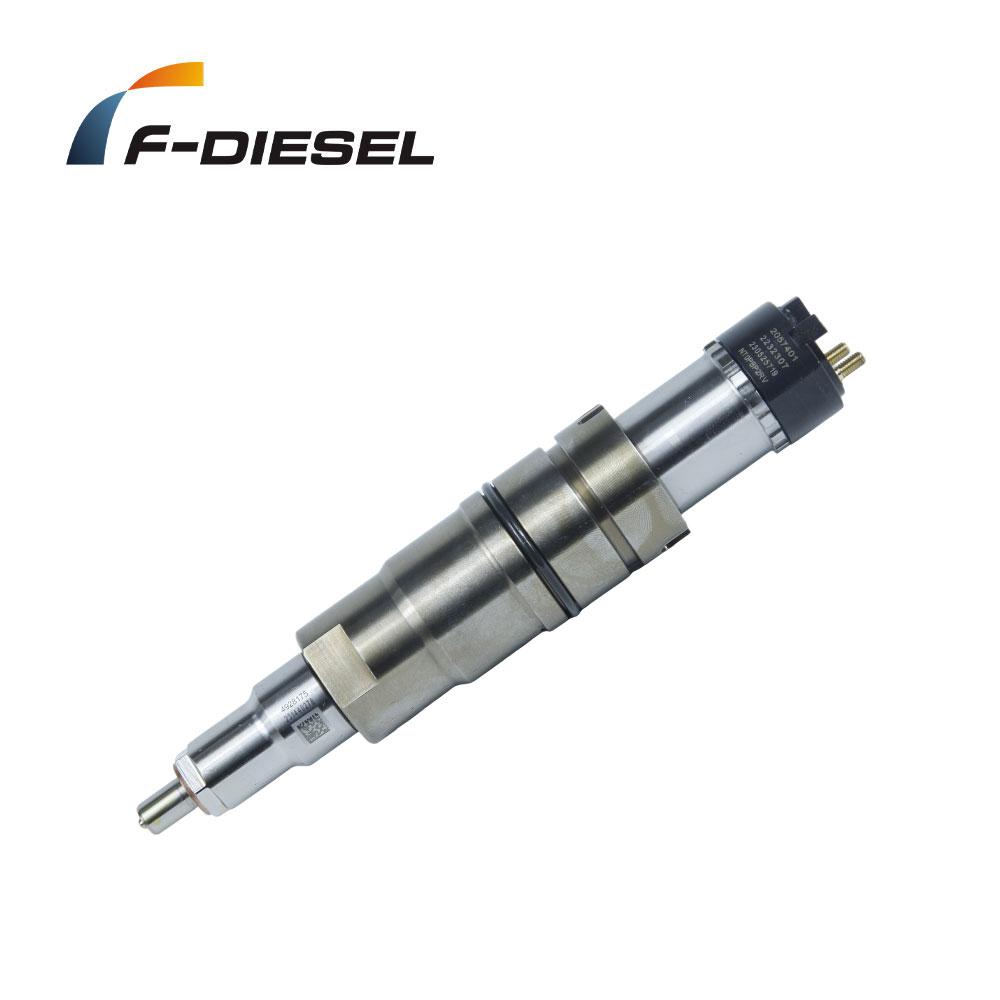

What Is a Common Rail Injector?

A Common Rail Injector is a key component of modern diesel fuel injection systems. It precisely controls the delivery of high-pressure fuel from the common rail into the engine combustion chamber.

Unlike traditional mechanical injectors, common rail injectors are electronically controlled (via ECU), allowing multiple injections per combustion cycle for improved efficiency, lower emissions, and better engine performance.

They are widely used in passenger vehicles, heavy-duty trucks, construction machinery, agricultural equipment, marine engines, and industrial diesel power systems.

How a Common Rail Injector Works

The working principle of a common rail injector is based on high-pressure fuel delivery and electronic control:

• High-pressure fuel is stored in the common rail
• ECU sends electrical signals to the injector solenoid or piezo actuator
• The injector needle opens with precise timing
• Fuel is atomized and injected into the combustion chamber
• Multiple injection events (pilot, main, post injection) may occur in one cycle

This allows extremely accurate control of combustion timing and fuel quantity.

Types of Common Rail Injectors

1. Solenoid Common Rail Injector

• Uses electromagnetic solenoid valve control
• Widely used in most diesel engines
• Cost-effective and reliable design

2. Piezoelectric Injector

• Uses piezo crystal actuator for ultra-fast response
• Higher precision and faster injection control
• Common in Euro V / Euro VI emission systems

3. Multi-Hole Injector

• Equipped with multiple spray orifices
• Ensures fine atomization and even fuel distribution
• Standard in modern diesel engines

4. Unit Injector (UIS / PDE systems – related type)

• Combines pump and injector in one unit
• Used in specific engine platforms

Key Components of a Common Rail Injector

A precision injector assembly includes:

• Injector body
• Control valve (solenoid or piezo stack)
• Needle valve assembly
• Nozzle tip with micro orifices
• High-pressure fuel inlet
• Return fuel channel
• Sealing components (O-rings, washers)
• Control chamber

Each part must meet micron-level machining precision.

Materials Used in Common Rail Injectors

To withstand extreme pressure and heat, injectors are made from:

• High-strength alloy steel
• Precision hardened stainless steel
• Tungsten carbide-coated needle valves
• Wear-resistant ceramic coatings
• Anti-corrosion treated metal alloys

These materials ensure durability under high injection pressures (up to 2500+ bar).

Applications of Common Rail Injectors

Common rail injectors are widely used in:

• Diesel passenger vehicles
• Heavy-duty trucks and buses
• Construction machinery (excavators, loaders, cranes)
• Agricultural tractors and harvesters
• Marine diesel engines
• Industrial generators
• Mining and off-road equipment

Advantages of Common Rail Injectors

1. High Injection Precision

Accurate fuel delivery improves combustion efficiency.

2. Better Fuel Economy

Optimized spray timing reduces fuel consumption.

3. Lower Emissions

Multi-stage injection reduces soot and NOx emissions.

4. Strong Engine Performance

Improves torque, acceleration, and load response.

5. Quiet Engine Operation

Pilot injection reduces combustion noise and vibration.

Manufacturing Process Overview

High-quality common rail injectors require strict manufacturing control:

• CNC precision machining
• Micro-hole laser drilling (nozzle tip)
• Heat treatment and hardening
• Surface polishing and coating
• Calibration of fuel injection flow
• High-pressure endurance testing
• Electronic response time testing (for solenoid/piezo units)

Each injector is tested for consistency and performance stability.

Quality Control Standards

Reliable common rail injectors must pass:

• Injection volume accuracy testing
• Spray pattern verification
• High-pressure fatigue testing
• Leakage and sealing inspection
• Electrical response testing
• Thermal stability validation
• OEM tolerance measurement

OEM-Compatible Fuel Systems

Common rail injectors are compatible with major diesel platforms:

• Bosch Common Rail Systems
• Delphi Diesel Systems
• Denso Injection Systems
• Siemens / Continental Systems
• Cummins Diesel Engines
• Caterpillar (CAT) Fuel Systems
• Perkins Diesel Engines

Why Choose High-Quality Common Rail Injectors?

A professional supplier ensures:

• Stable OEM-level precision manufacturing
• Consistent fuel spray performance
• Wide engine model compatibility
• Strong durability under high pressure
• Bulk wholesale supply capability
• OEM/ODM customization support

Frequently Asked Questions (FAQ)

What does a common rail injector do?

It precisely injects high-pressure diesel fuel into the engine cylinder for efficient combustion.

What is the difference between solenoid and piezo injectors?

Solenoid injectors use electromagnetic control, while piezo injectors use crystal actuators for faster and more precise operation.

What causes injector failure?

Common causes include fuel contamination, wear, carbon buildup, and electrical faults.

Can common rail injectors be repaired?

Some can be cleaned and recalibrated, but severely worn injectors usually require replacement.

Conclusion

Common rail injectors are essential components in modern diesel engines, directly impacting fuel efficiency, emissions control, and engine performance. Their precision design and electronic control make them a critical part of advanced diesel injection systems.

For distributors and manufacturers, choosing a high-quality supplier ensures long-term engine stability, reduced maintenance costs, and consistent performance across applications.
