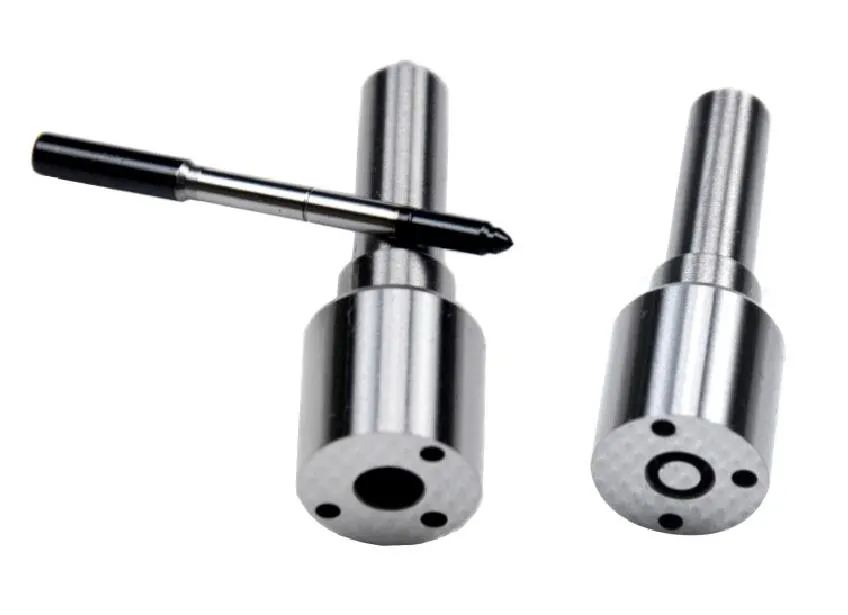

What Is a Common Rail Nozzle?

A Common Rail Nozzle is a precision-engineered component used in diesel common rail injection systems. It is installed at the end of the fuel injector and is responsible for atomizing high-pressure diesel fuel into a fine mist inside the combustion chamber.

This fine atomization ensures complete combustion, improved fuel efficiency, reduced emissions, and stable engine performance.

Common rail nozzles are widely used in passenger vehicles, heavy-duty trucks, construction machinery, agricultural equipment, and industrial diesel engines.

How a Common Rail Nozzle Works

The common rail nozzle operates under extremely high fuel pressure and electronic control:

• High-pressure fuel is delivered from the common rail
• The injector needle controls fuel flow into the nozzle
• Fuel passes through micro-sized orifices in the nozzle tip
• Fuel is atomized into fine spray patterns inside the combustion chamber
• ECU controls injection timing and multiple injection events per cycle

This precise control enables efficient combustion and optimized engine performance.

Types of Common Rail Nozzles

1. Multi-Hole Nozzle

• Most widely used type
• Contains 5–9 micro holes
• Produces fine and evenly distributed spray pattern
• Ideal for modern passenger and commercial diesel engines

2. Sac-Type Nozzle

• Contains a small internal cavity (sac)
• Suitable for older diesel injection systems
• Simple structure and stable performance

3. VCO (Valve Covered Orifice) Nozzle

• No sac volume design
• Reduces fuel dribble after injection
• Improves emissions control and combustion efficiency

4. Mini-Sac Nozzle

• Reduced sac volume design
• Balances durability and emission performance
• Common in Euro IV / V / VI systems

Key Components of a Common Rail Nozzle

A high-precision nozzle assembly includes:

• Nozzle body
• Needle valve
• Nozzle seat
• Spray holes (micro-orifices)
• Control chamber
• High-pressure sealing surface
• Heat-treated nozzle tip

Each component must meet strict micron-level precision requirements.

Materials Used in Common Rail Nozzles

To withstand extreme pressure and heat, nozzles are made from:

• High-strength alloy steel
• Hardened stainless steel
• Tungsten carbide-coated materials
• Anti-wear surface coatings
• Heat-treated precision metal alloys

These materials ensure resistance to erosion, cavitation, and high-temperature fatigue.

Applications of Common Rail Nozzles

Common rail nozzles are used in a wide range of diesel engines:

• Passenger diesel cars
• Heavy-duty trucks and buses
• Construction machinery (excavators, loaders)
• Agricultural tractors and harvesters
• Marine diesel engines
• Industrial generator sets
• Mining and off-highway equipment

Advantages of High-Quality Common Rail Nozzles

1. Superior Fuel Atomization

Creates fine fuel mist for complete combustion.

2. Improved Fuel Efficiency

Optimized spray pattern reduces fuel waste.

3. Lower Emissions

Reduces soot, particulate matter, and NOx emissions.

4. Strong Engine Performance

Enhances torque response and power stability.

5. High Precision Control

Works with ECU-controlled multiple injection strategies.

Manufacturing Process Overview

High-quality common rail nozzles require advanced manufacturing steps:

• CNC precision machining
• Micro-hole drilling (laser or EDM)
• Heat treatment and hardening
• Surface polishing and coating
• Spray pattern calibration testing
• Flow rate measurement
• High-pressure durability testing

Each nozzle is engineered for micron-level accuracy.

Quality Control Standards

Professional-grade nozzles must pass:

• Injection spray pattern testing
• Fuel flow consistency testing
• High-pressure fatigue testing
• Leakage and sealing inspection
• Dimensional accuracy verification
• Thermal resistance testing

OEM-Compatible Fuel Systems

Common rail nozzles are compatible with major diesel systems such as:

• Bosch Common Rail Systems
• Delphi Fuel Injection Systems
• Denso Injector Systems
• Siemens / Continental Systems
• Cummins Diesel Engines
• CAT / Perkins Fuel Systems

Why Choose High-Quality Common Rail Nozzle Suppliers?

A professional supplier ensures:

• Stable micron-level manufacturing accuracy
• Consistent spray pattern performance
• Wide OEM engine compatibility
• Bulk wholesale supply capability
• Strict quality inspection system
• OEM/ODM customization support

Frequently Asked Questions (FAQ)

What is the function of a common rail nozzle?

It atomizes high-pressure diesel fuel into fine droplets for efficient combustion inside the engine cylinder.

What causes common rail nozzle failure?

Common causes include fuel contamination, wear, carbon buildup, and high-pressure erosion.

Can common rail nozzles be repaired?

In some cases, cleaning and calibration are possible, but severe wear usually requires replacement.

Are aftermarket nozzles reliable?

High-quality aftermarket nozzles manufactured to OEM standards can perform comparably to original parts.

Conclusion

Common rail nozzles are essential components in modern diesel injection systems, directly influencing fuel efficiency, emissions, and engine performance. Precision manufacturing, advanced materials, and strict quality control are critical to ensuring long-term reliability.

For distributors and engine manufacturers, selecting a stable supplier is key to maintaining consistent diesel engine performance and reducing operational costs.
