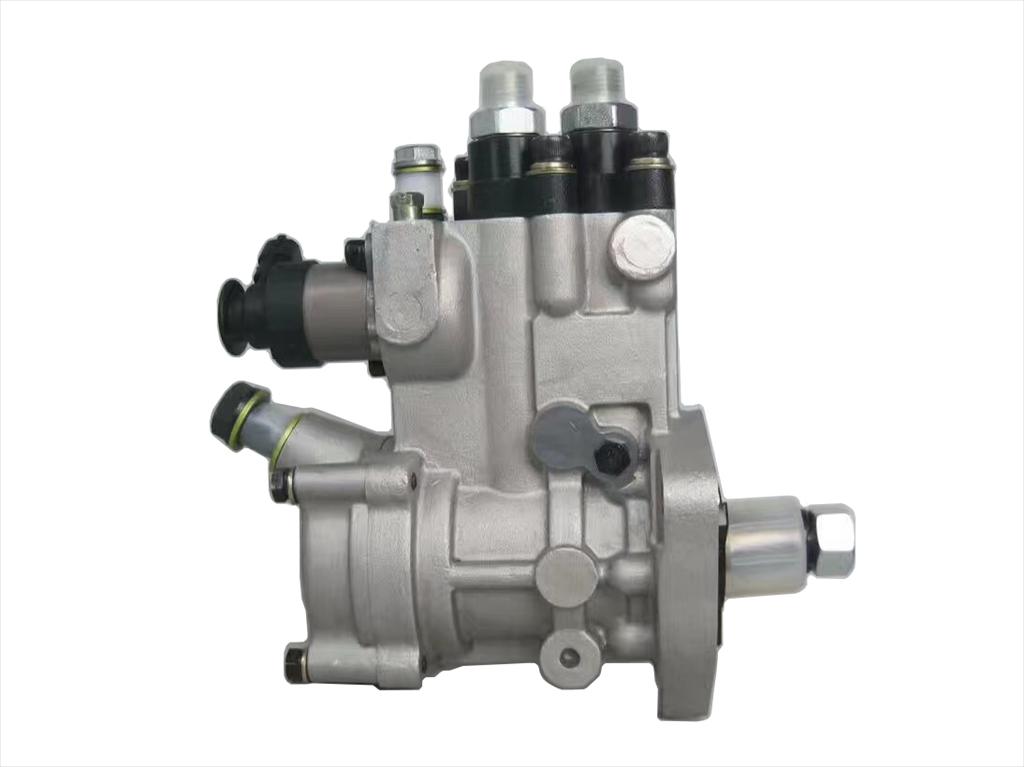

What Is a Common Rail Fuel Pump?

A Common Rail Fuel Pump is a core component of modern diesel fuel injection systems. It generates extremely high fuel pressure and supplies it to a shared rail (accumulator), which then distributes fuel to each injector with precise timing controlled electronically.

Compared with traditional mechanical injection pumps, common rail systems provide higher efficiency, better atomization, lower emissions, and improved engine performance.

These pumps are widely used in passenger vehicles, commercial trucks, construction machinery, agricultural equipment, and industrial diesel engines.

How a Common Rail Fuel Pump Works

The common rail fuel pump operates in a continuous high-pressure cycle:

• Low-pressure fuel is drawn from the tank
• The pump compresses fuel to very high pressure (up to 1800–2500+ bar in modern systems)
• Pressurized fuel is stored in the common rail
• Electronic control unit (ECU) regulates injector timing independently
• Injectors spray fuel into the combustion chamber precisely when needed

This separation of pressure generation and injection control is the key innovation of common rail technology.

Main Types of Common Rail Fuel Pumps

1. High-Pressure Plunger Pump

• Most common type in modern diesel engines
• Uses one or multiple plungers to generate pressure
• Compact and highly efficient design

2. Radial Piston Pump

• Uses radial pistons driven by a cam ring
• Provides stable high-pressure output
• Common in heavy-duty diesel engines

3. Inline High-Pressure Pump

• Cylinder-based pumping structure
• Strong durability for industrial engines
• Often used in older or heavy-load systems

Key Components of a Common Rail Fuel Pump

A complete fuel pump assembly typically includes:

• Pump housing body
• Plunger and barrel assembly
• Camshaft and drive mechanism
• Inlet metering valve (IMV)
• Pressure control valve
• Fuel delivery outlet
• Seals and high-pressure gaskets
• Lubrication and cooling channels

Each component must withstand extreme pressure and friction conditions.

Materials Used in Common Rail Fuel Pumps

To ensure durability and precision, manufacturers use:

• Hardened alloy steel
• High-strength stainless steel
• Tungsten carbide-coated plungers
• Precision ground ceramic coatings
• Anti-corrosion treated metal alloys

These materials ensure long service life under high-pressure diesel environments.

Applications of Common Rail Fuel Pumps

Common rail fuel pumps are widely used in:

• Passenger diesel vehicles
• Heavy-duty trucks and buses
• Construction machinery (excavators, loaders, cranes)
• Agricultural tractors and harvesters
• Marine diesel engines
• Industrial generators
• Mining and off-highway equipment

Advantages of Common Rail Fuel Pump Systems

1. High Fuel Efficiency

Precise pressure control improves combustion efficiency and reduces fuel waste.

2. Lower Emissions

Better atomization significantly reduces soot and harmful emissions.

3. Improved Engine Performance

Stable high-pressure fuel delivery enhances torque and power output.

4. Quiet Engine Operation

Multiple injection events reduce combustion noise.

5. Flexible Injection Control

ECU-controlled system allows multiple injection phases per cycle.

Manufacturing Process Overview

High-quality common rail fuel pumps require strict production control:

• CNC ultra-precision machining
• Heat treatment and surface hardening
• Micro-polishing of plunger components
• High-pressure calibration testing
• Flow rate and leakage testing
• Dynamic performance simulation testing
• Final assembly inspection

Every stage ensures micron-level accuracy and reliability.

Quality Control Standards

Reliable common rail fuel pumps must meet:

• ISO/TS automotive quality standards
• High-pressure endurance testing (2000+ bar simulation)
• Fuel delivery accuracy calibration
• Temperature and wear resistance testing
• Leakage and sealing integrity checks
• Dimensional tolerance inspection

Common OEM-Compatible Engine Systems

Common rail fuel pumps are widely used in:

• Bosch Common Rail Systems
• Delphi Diesel Systems
• Denso Common Rail Systems
• Siemens/VDO Fuel Systems
• Cummins Common Rail Engines
• CAT diesel injection systems

Why Choose a Professional Common Rail Fuel Pump Supplier?

A qualified supplier ensures:

• Stable OEM-level manufacturing precision
• Wide compatibility across diesel engine models
• Strict quality inspection system
• High-pressure performance reliability
• Wholesale and bulk supply capability
• OEM/ODM customization services

Frequently Asked Questions (FAQ)

What does a common rail fuel pump do?

It generates and maintains high fuel pressure for diesel engine injectors in a common rail system.

What is the pressure of a common rail fuel pump?

Modern systems typically operate between 1,600 bar and 2,500+ bar depending on engine design.

Are common rail fuel pumps interchangeable?

Not always. Compatibility depends on OEM specifications and engine model.

What causes common rail pump failure?

Common causes include fuel contamination, poor lubrication, wear, and excessive pressure load.

Conclusion

Common rail fuel pumps are a critical component of modern diesel engine systems, delivering high-pressure fuel with extreme precision. Their advanced design improves fuel efficiency, reduces emissions, and enhances engine performance across a wide range of industrial and automotive applications.

For buyers and distributors, selecting a high-quality supplier ensures long-term reliability, stable engine performance, and reduced maintenance costs.
