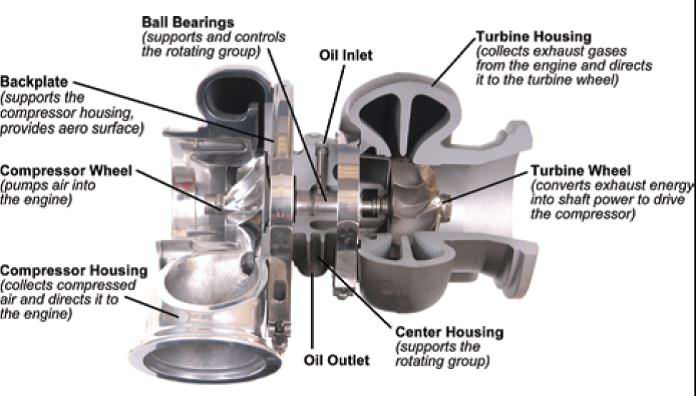

What are the Components of a Turbocharger?
- Compressor Housing
- Turbine Housing
- Center Housing and
- Rotating Assembly (CHRA)
- Compressor Wheel
- Turbine Wheel Assembly
- (wheel and shaft)
- Backplate
- Bearing System
- Oil Inlet
- Oil Outlet

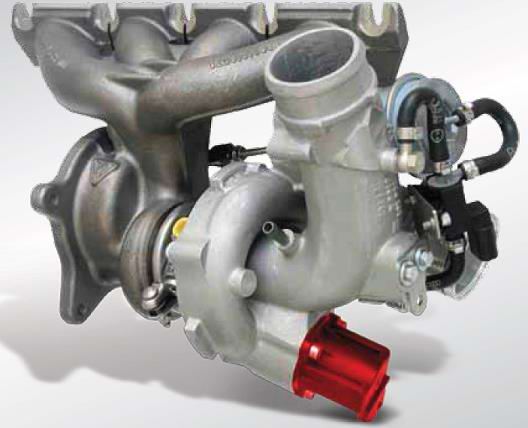

Other Components
Control valves
- Compressor recirculation valve(Gasoline turbo)
- Wastegate control valve

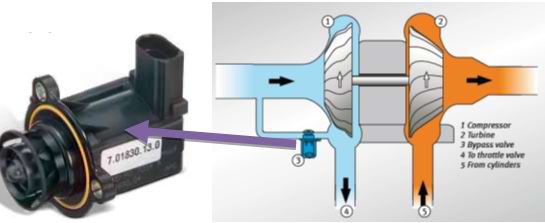

Compressor recirculation valve
another name:BOV (blow off valve); by-pass valve
Control method:Air pressure and Electronic

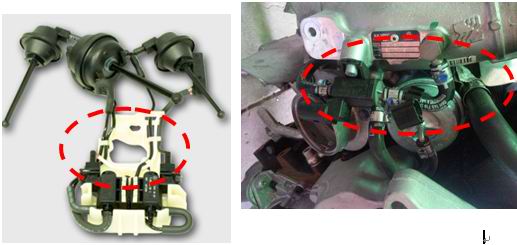

Wastegate control valve
Control method:Air pressure and Electronic
